Question 1

You are troubleshooting a connectivity problem and want to isolate the problem. You suspect that a router on the route to an unreachable network is at fault. Which command would you issue to see where the packets stop?

Accepted Answer

A)   router#ping
B)   router#tracert
C)   router#show ip route
D)   router#show cdp neighbors
E)   router#traceroute

Question 2

You are a called upon to troubleshoot connectivity problems to a network device on a production floor. You have used ping and traceroute to verify that you cannot connect to the device from the management network. The network is 209.165.202.128/27 and the device has been given the IP address 209.165.202.158 and mask 255.255.255.224. You have verified that you can reach the device with your computer connected to the same switch as the device. What could be the cause of this problem?

Accepted Answer

A)   The device is set to the wrong subnet mask.
B)   The device is set to the wrong IP address.
C)   The device has no IP default gateway.
D)   The device is connected to a switchport in the wrong VLAN.

Question 3

An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?

Accepted Answer

A)   Enable port security and use the keyword sticky.
B)   Set the switchport mode to trunk and save the running configuration.
C)   Use the switchport protected command to have the MAC addresses added to the configuration.
D)   Use the no switchport port-security command to allow MAC addresses to be added to the configuration.

Question 4

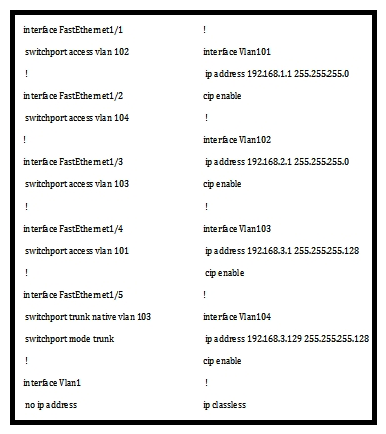

Exhibit:  Refer to the exhibit. Which port should a PLC with IP address 192.168.3.65 be plugged into in order to communicate to the rest of the network?

Accepted Answer

A)   FastEthernet1/1
B)   FastEthernet1/2
C)   FastEthernet1/3
D)   FastEthernet1/4
E)   FastEthernet1/5

Question 5

The network administrator is using a Windows PC application that is called putty.exe for remote communication to a switch for network troubleshooting. Which two protocols could be used during this communication? (Choose two) .

Accepted Answer

A)   SNMP
B)   HTTP
C)   Telnet
D)   RMON
E)   SSH

Question 6

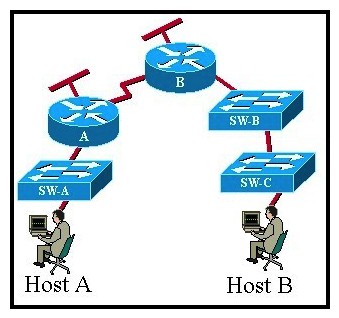

Exhibit:  Refer to the exhibit. CCNA.com has the industrial network shown in the exhibit. All switches are configured as layer 2 switches and are using VLAN 1 as their management VLAN. Each VLAN 1 interface has been assigned the correct IP address. What is the purpose of assigning a default gateway to SW-C switch?

Accepted Answer

A)   allows connectivity between the VLAN 1 interface on SW-C and other devices in the network.
B)   allows connectivity between Host A and other devices in the network.
C)   allows connectivity between Host B and other devices in the network.
D)   allows the switch to pass traffic between Host A and Host B

Question 7

With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid green?

Accepted Answer

A)   The port is sending or receiving data.
B)   A link is present.
C)   No link is present.
D)   There is a link fault.
E)   The port is not forwarding.

Question 8

Exhibit:  Which two statements are correct for a safe wiring installation to the terminal block of the switch or endpoint? (Choose two.)

Accepted Answer

A)   Insert a green ground wire into the terminal block that is marked RT for return.
B)   Verify that DC power is live and within 24 VDC voltage range before starting wiring.
C)   Verify that the DC power circuit includes an overcurrent protective device that limits the DC current to 5 A.
D)   Because this is a low-voltage DC circuit, anyone can install this wiring without electrical training or qualifications.
E)   Connect the positive 24 VDC conductor to the V terminal and connect the negative 24 VDC return wire to the RT terminal.F)  A ground wire can optionally be connected to the screw terminal on the front of the switch.

Question 9

According to the Purdue Reference Model, at which layer would you perform manufacturing operations and control?

Accepted Answer

A)   Level 0
B)   Level 1
C)   Level 2
D)   Level 3
E)   Level 4

Question 10

An Ethernet cable is attached to a PC NIC and then attached to a switch port. The PC power is turned on and the switch port link LED turns green. The link light indicates what two conditions? (Choose two.)

Accepted Answer

A)   Layer 2 communication has been established between the PC and switch.
B)   The PC has received a DHCP address.
C)   Traffic is being sent from the switch to the PC.
D)   If flashing, the green LED indicates port speed of 100 Mb/s.
E)   The Layer 1 media is functioning between the PC and switch.F)  The switch port is functioning as a half-duplex connection.

Question 11

With a Cisco IE 2000 switch, what does a port status LED indicate when it is alternating green and amber?

Accepted Answer

A)   The port is sending or receiving data.
B)   A link is present.
C)   No link is present.
D)   There is a link fault.
E)   The port is not forwarding.

Question 12

Which option allows an EtherNet/IP I/O device to be safely installed where it is subject to water immersion?

Accepted Answer

A)   The device is rated IP20 and the power wiring is installed securely to the terminal block.
B)   The device is rated IP67 and a power cordset is used.
C)   The device is rated IP67 and immersed to 10 m.
D)   The device is rated IP20 and immersed to 10 m.

Question 13

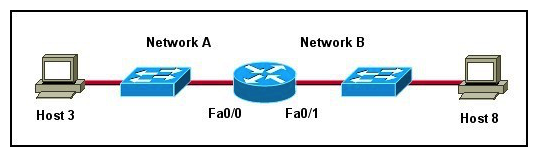

Exhibit:  Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

Accepted Answer

A)   the address of the switch interface that is connected to router interface Fa0/0
B)   the address of the switch interface that is connected to router interface Fa0/1
C)   the address of the host that is connected to Network A
D)   the address of the host that is connected to Network B
E)   the address of the router interface Fa0/0F)  the address of the router interface Fa0/1

Question 14

With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid amber?

Accepted Answer

A)   The port is sending or receiving data.
B)   A link is present.
C)   No link is present.
D)   There is a link fault.
E)   The port is not forwarding.

Question 15

With what are APC connectors used?

Accepted Answer

A)   Category 6a cables that need tight radius bends
B)   copper network cables in corrosive environments
C)   single-mode fiber-optic cables to reduce return loss
D)   high-density copper patch panels

Question 16

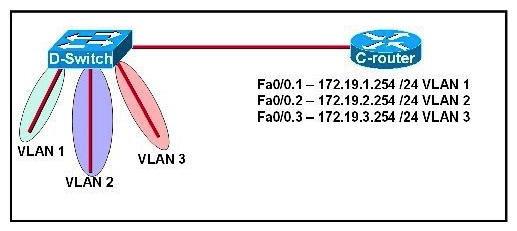

Exhibit:  Refer to the exhibit. C-router is to be used as a "router-on-a-stick" to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs have been configured with the appropriate default gateway. What is true about this configuration?

Accepted Answer

A)   These commands need to be added to the configuration:C-router(config) # router eigrp 123C- router(config-router) # network 172.19.0.0
B)   These commands need to be added to the configuration:C-router(config) # router ospf 1C- router(config-router) # network 172.19.0.0 0.0.3.255 area 0
C)   These commands need to be added to the configuration:C-router(config) # router ripC-router(config- router) # network 172.19.0.0
D)   No further routing configuration is required.
